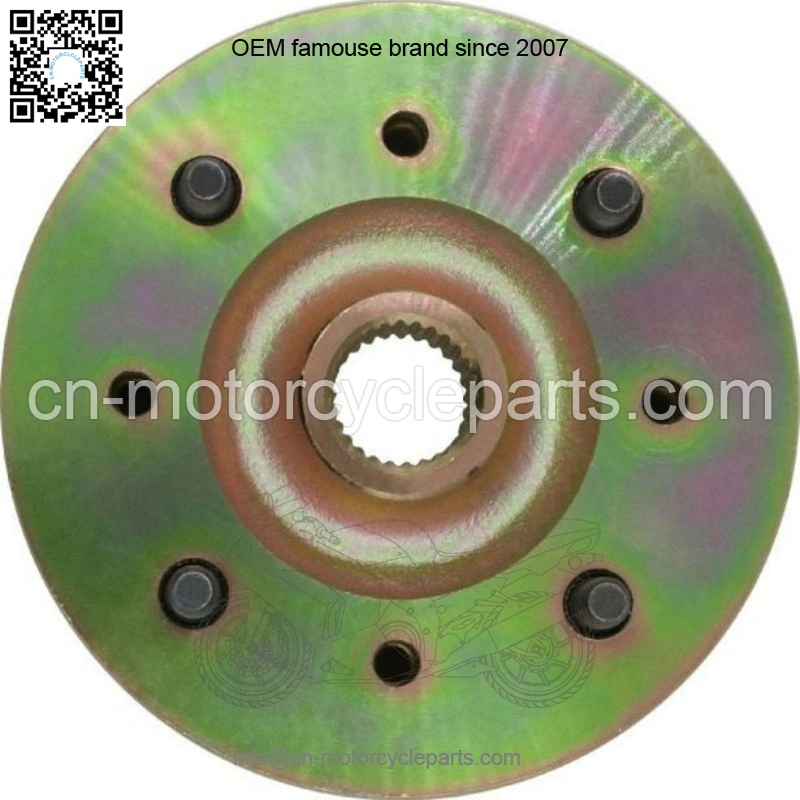

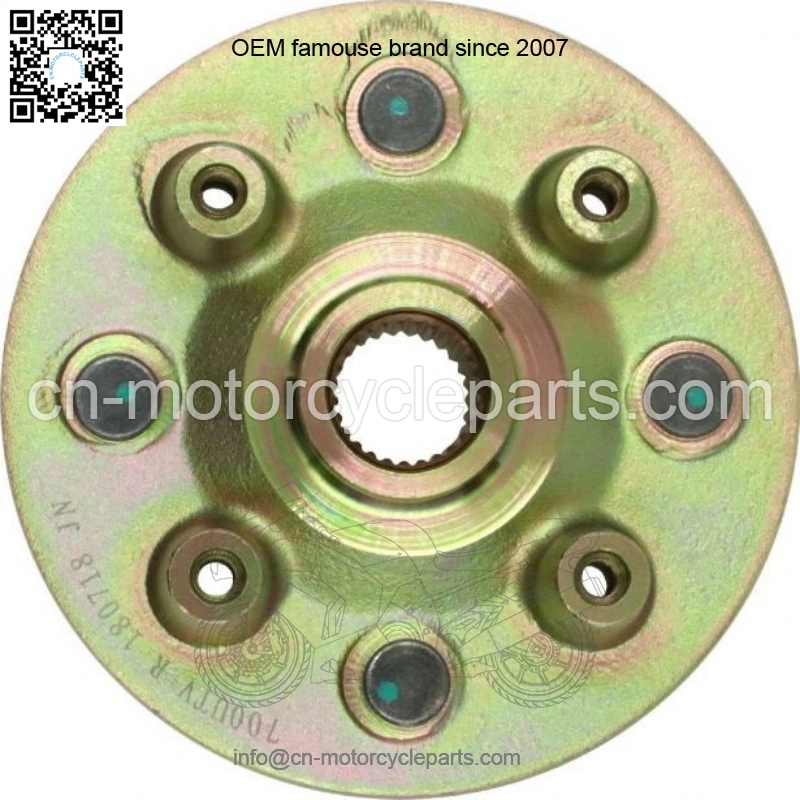

Wheel Hub - Front, UTV, Hisun, 700cc, 27 Spline Trivalent zinc

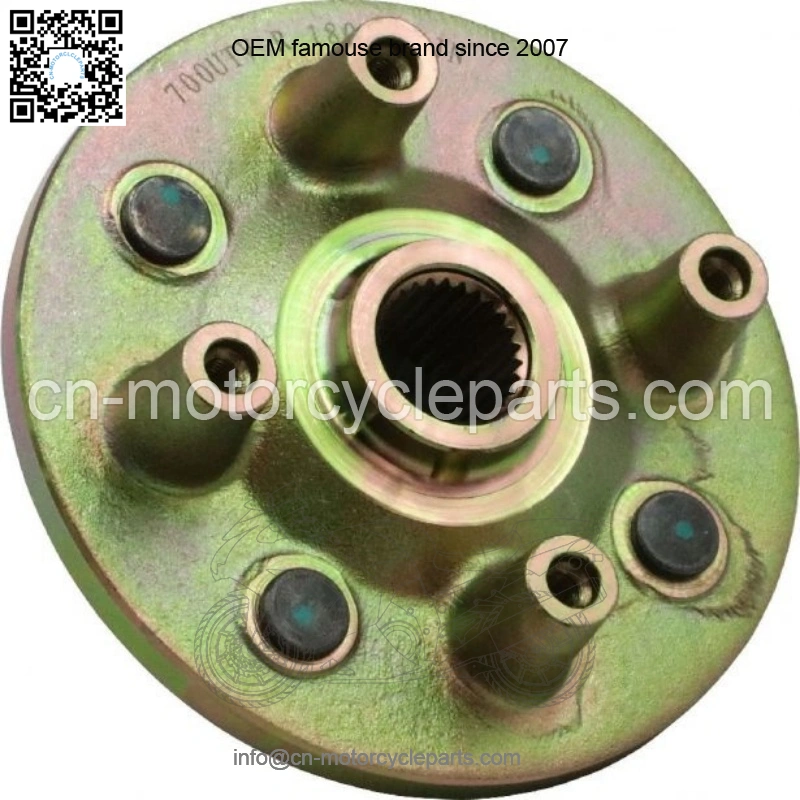

Wheel Hub - Front, UTV, Hisun, 700cc, 27 Spline Trivalent zinc - Image 2

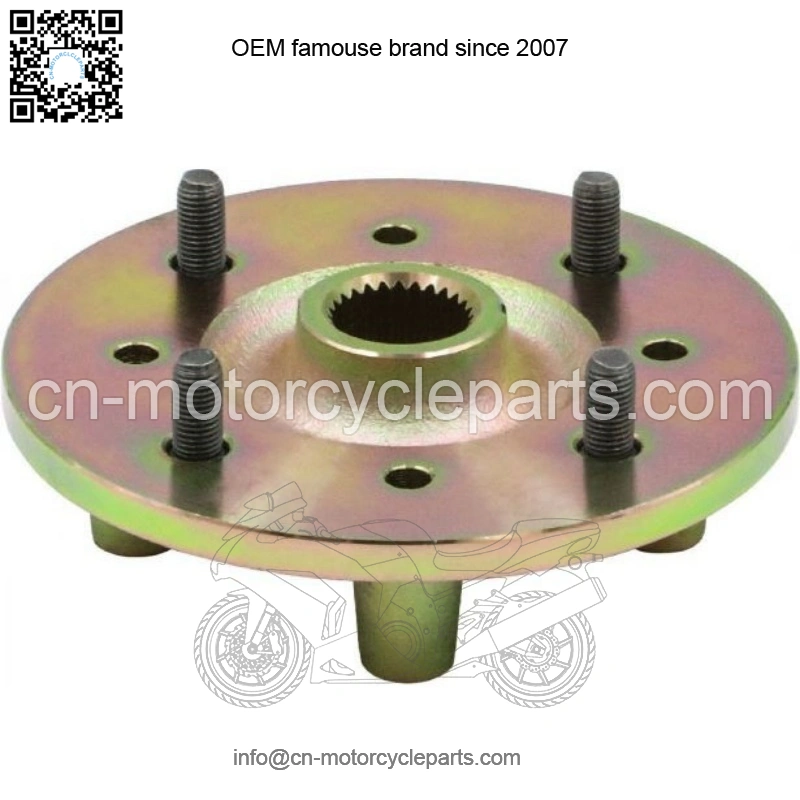

Wheel Hub - Front, UTV, Hisun, 700cc, 27 Spline Trivalent zinc - Image 3

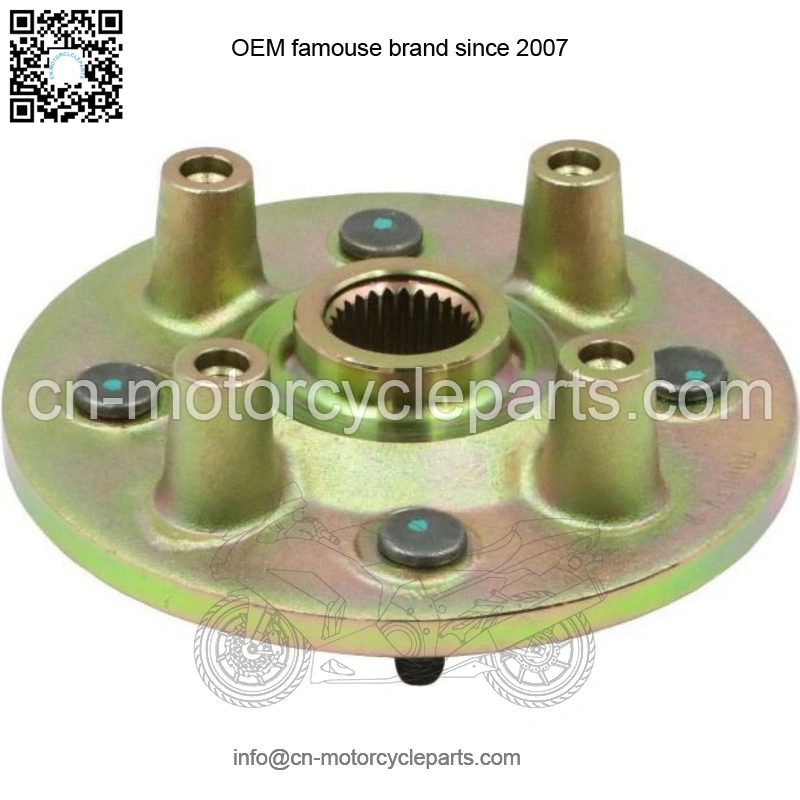

Wheel Hub - Front, UTV, Hisun, 700cc, 27 Spline Trivalent zinc - Image 4

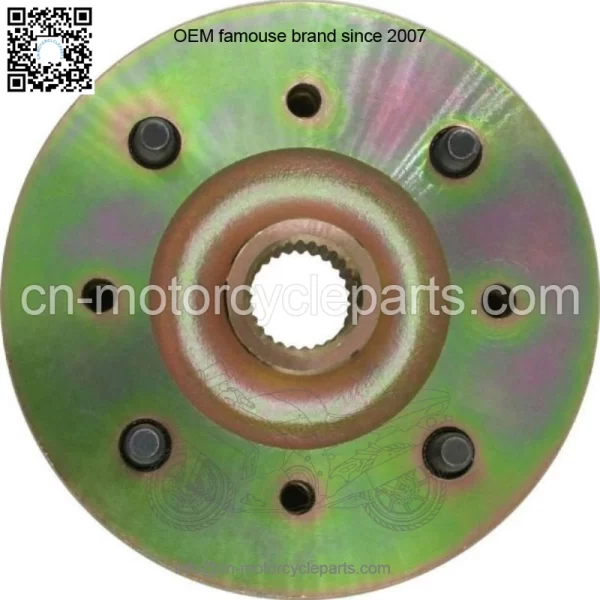

Wheel Hub - Front, UTV, Hisun, 700cc, 27 Spline Trivalent zinc - Image 5

Wheel Hub – Front, UTV, Hisun, 700cc, 27 Spline Trivalent zinc

SKU LJG.04778 P115N00461100000 Category Tags , ,

Outside Diameter: 154mm
Bolt Stud Height: 52mm
Bolt Stud Spacing (centre-centre): 78mm
Bolt Stud Spacing (centre-centre diagonal): 110mm
Bolt Stud: M10
Rotor Mounting Holes: 8mm
Rotor Mounting Hole Spacing (across): 87mm (centre to centre)
Rotor Mounting Hole Spacing (side by side): 62mm (centre to centre)
Axle Shaft Diameter: 27.4mm
