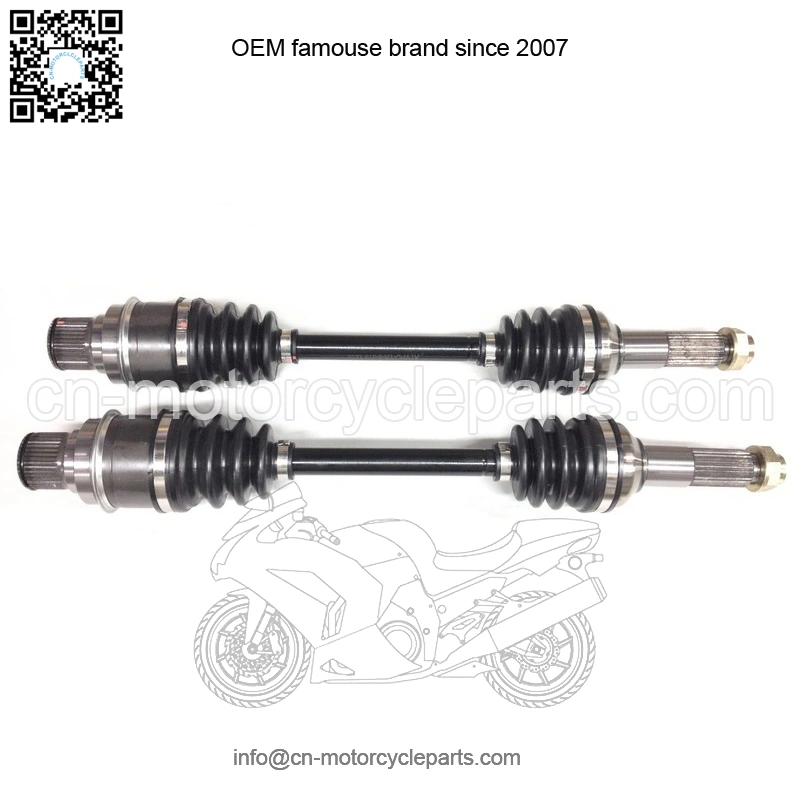

Pair of Rear Axles for Yamaha Grizzly 350 400 450 / Kodiak 400 450 4×4

Product categories

Pair of Rear Axles for Yamaha Grizzly 350 400 450 / Kodiak 400 450 4×4

SKU Z.20735 4S2-2530U-00-00, 4S1-2530V-00-00 Category Tags ,

This is a pair of new Rear CV axles for a Yamaha ATV.They fit the following 4×4 models:2007-2011 … Grizzly 350 IRS2007-2008 … Grizzly 4002007-2010 … Grizzly 4502005-2006 … Kodiak 4002005-2006 … Kodiak 450Rear, Left & Right side*Not intended for use in lifted vehiclesProduct features:
Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 39 (both)
Outboard CV joint spline count: 27 (both)
Compressed overall axle length: 508 mm (both)
Replaces Yamaha OE # 4S2-2530U-00-00, 4S1-2530V-00-00
