FRONT CV Axle Shaft + Wheel Hub Bearing for 10-16 Chevy Equinox GMC Terrain 2.4L
FRONT CV Axle Shaft + Wheel Hub Bearing for 10-16 Chevy Equinox GMC Terrain 2.4L - Image 2
FRONT CV Axle Shaft + Wheel Hub Bearing for 10-16 Chevy Equinox GMC Terrain 2.4L - Image 3
FRONT CV Axle Shaft + Wheel Hub Bearing for 10-16 Chevy Equinox GMC Terrain 2.4L - Image 4

FRONT CV Axle Shaft + Wheel Hub Bearing for 10-16 Chevy Equinox GMC Terrain 2.4L

SKU Z.20883 513288 Category Tags ,

Front Driver & Passenger Side CV Axle + Wheel Hub Bearing Kit
Left Axle Specifications
Overall Length: 26 5/8″
Inner Spline: 27
Outer Spline: 30
Inner Shape: Male
ABS on Axle: None
Right Axle Specifications
Overall Length: 22 1/2″
Inner Spline: 27
Outer Spline: 30
Inner Shape: Female
ABS on Axle: None
Hub Specifications
Position: Front OR Rear – Left OR Right
Lugs: 5 Bolt
ABS on Hub: Yes

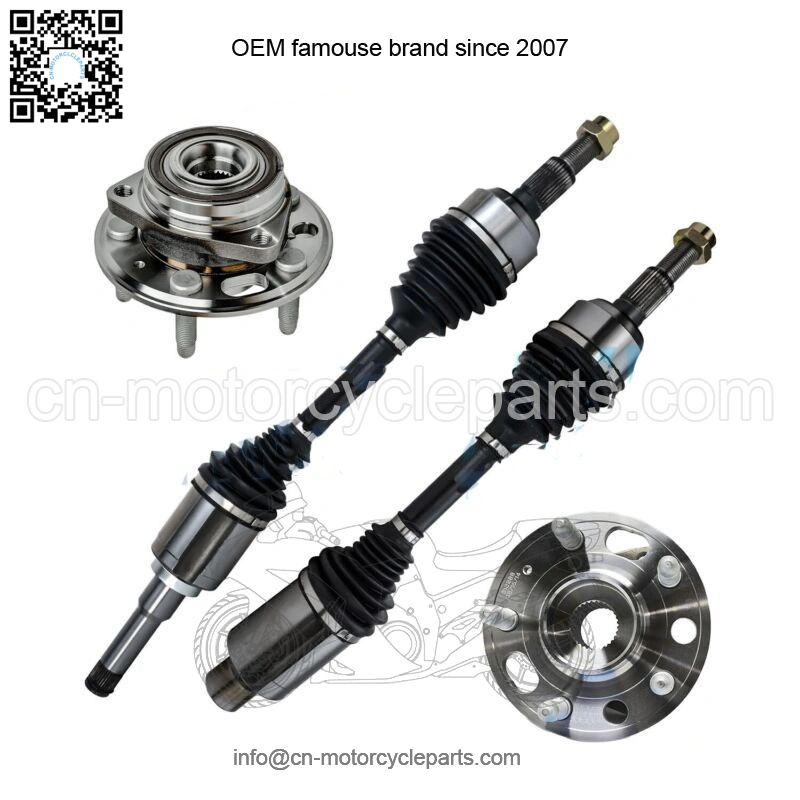

Kit Includes:

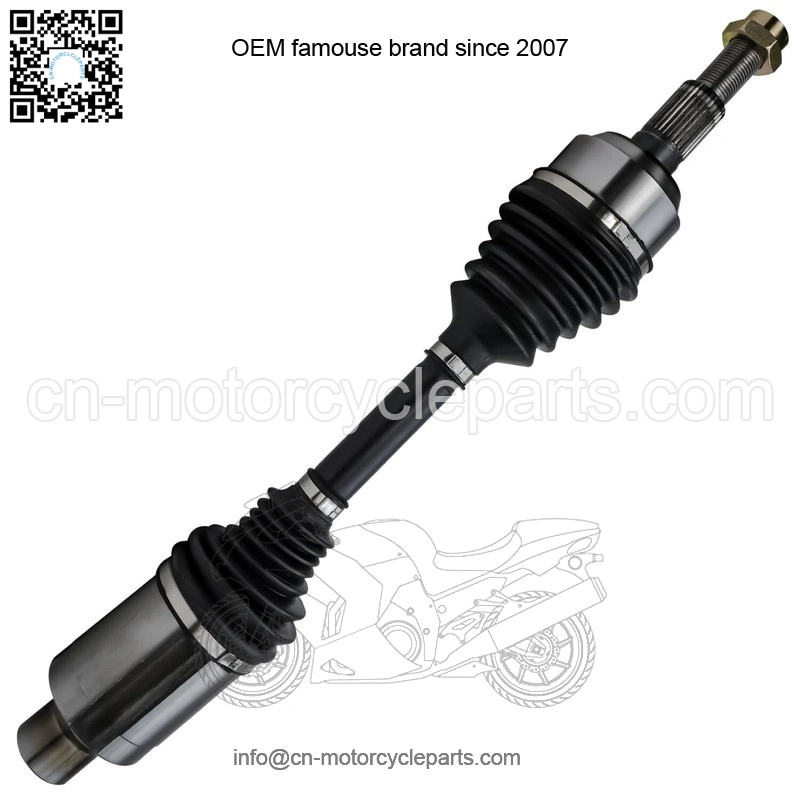

1x Front Left CV AXLE Shafts Assembly – Driver Side – 1122_AX

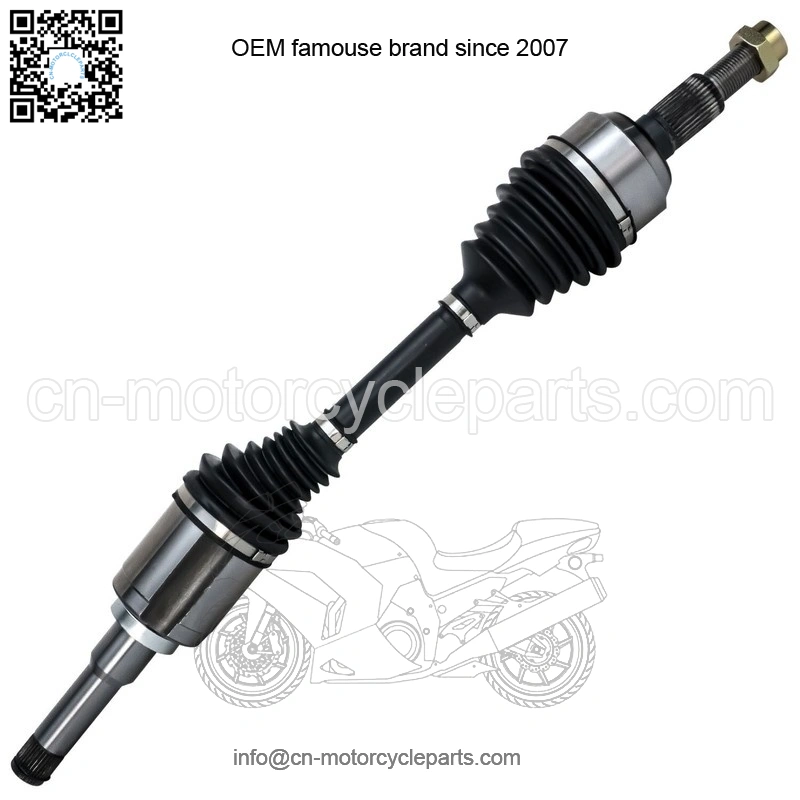

1x Front Right CV AXLE Shafts Assembly – Passenger Side – 1123_AX

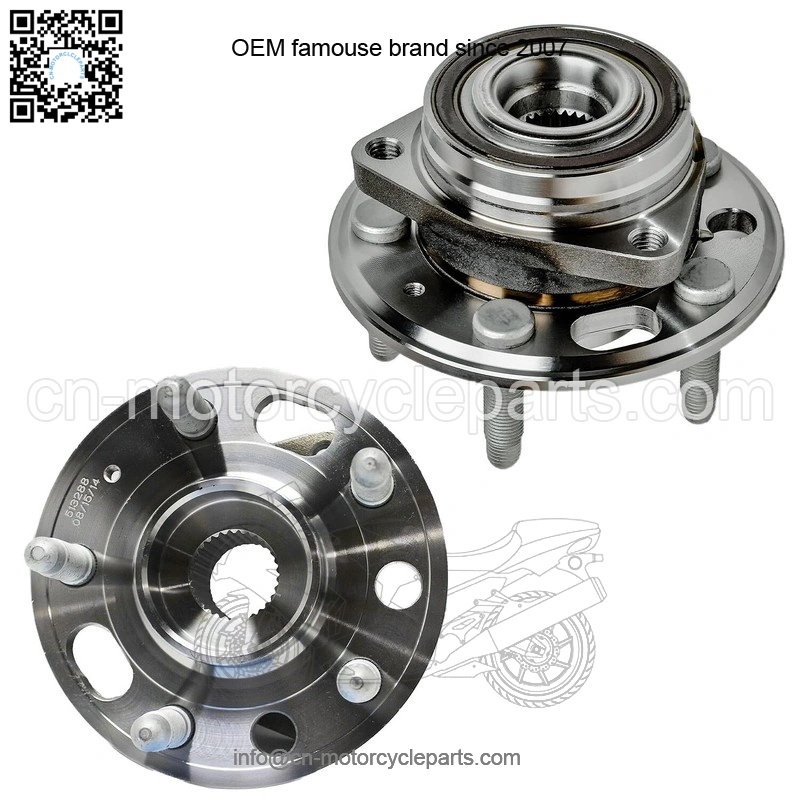

2x Passenger and Driver Wheel Hub Assemblies – 513288
