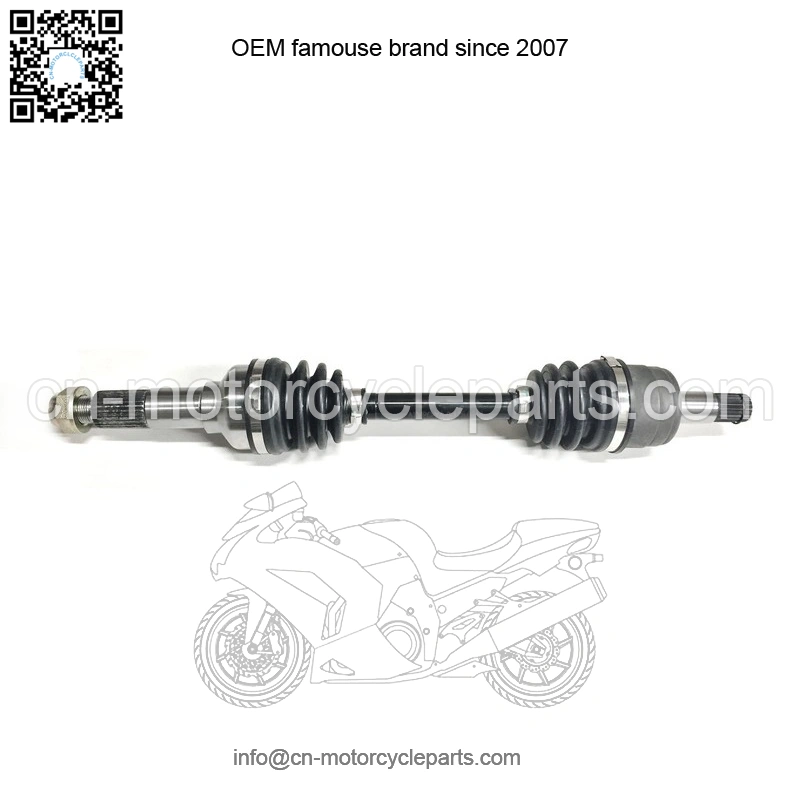

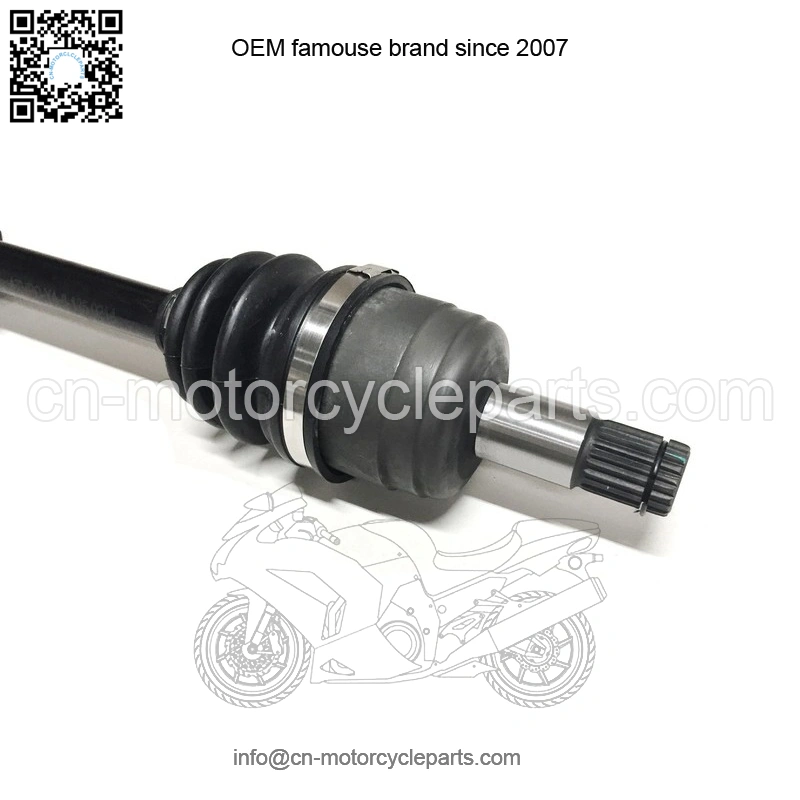

Front CV Axle for Yamaha Big Bear 400 / Grizzly 350 & 450 IRS

SKU Z.20645 4S1-2510F-00-00, 4S1-2510J-00-00 Category Tags ,

This is a new Front CV axle for a Yamaha ATV.It will fit the following 4×4 applications:Front, Left … 2007-2012 Big Bear 400 IRSFront, Right … 2007-2011 Grizzly 350 IRSFront, Right … 2008-2010/2012-2014 Grizzly 450*Not intended for use in lifted vehiclesProduct features:
Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 21
Outboard CV joint spline count: 27
Compressed overall axle length: 483 mm
