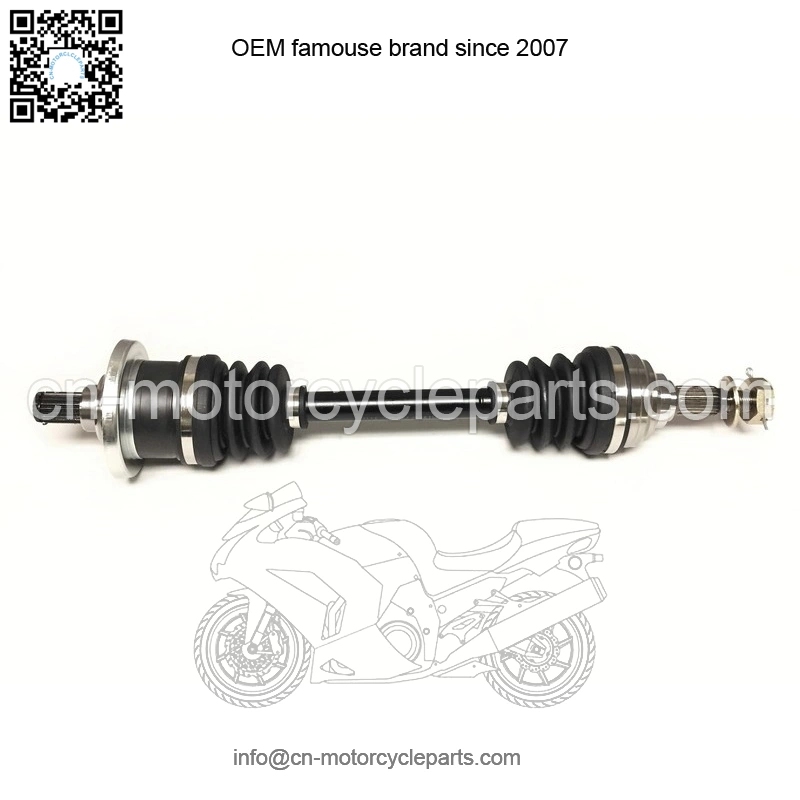

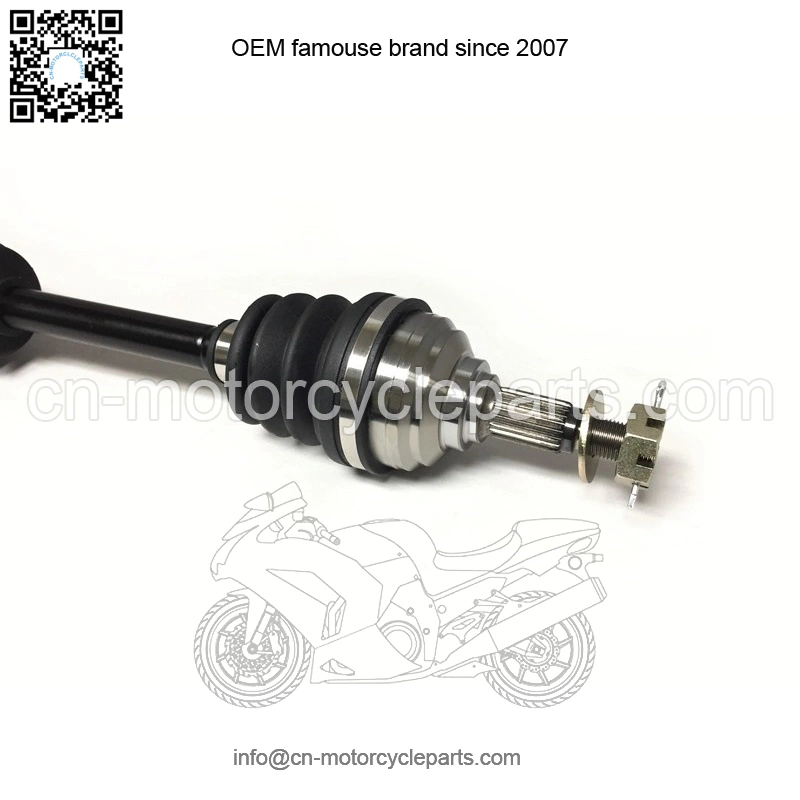

Front CV Axle for Arctic Cat 250, 300, 375, 400, 1502-528
Front CV Axle for Arctic Cat 250, 300, 375, 400, 1502-528 - Image 2
Front CV Axle for Arctic Cat 250, 300, 375, 400, 1502-528 - Image 3

Front CV Axle for Arctic Cat 250, 300, 375, 400, 1502-528

SKU Z.20444 1502-528, 0402-365 Category Tags ,

This is a new Front CV axle for an Arctic Cat ATV.It will fit the following 4×4 models:2002-2004 … 2502002-2004 … 3002002 … 3752003 … 400 (without FIS)2004 … ACT 4002002 … TBX 500*Not intended for use in lifted vehiclesProduct features:
Stronger than OEM, chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 21
Outboard CV joint spline count: 21
Compressed overall axle length: 500 mm
Replaces Arctic Cat OEM # 1502-528, 0402-365, 1502-530, 0402-987
