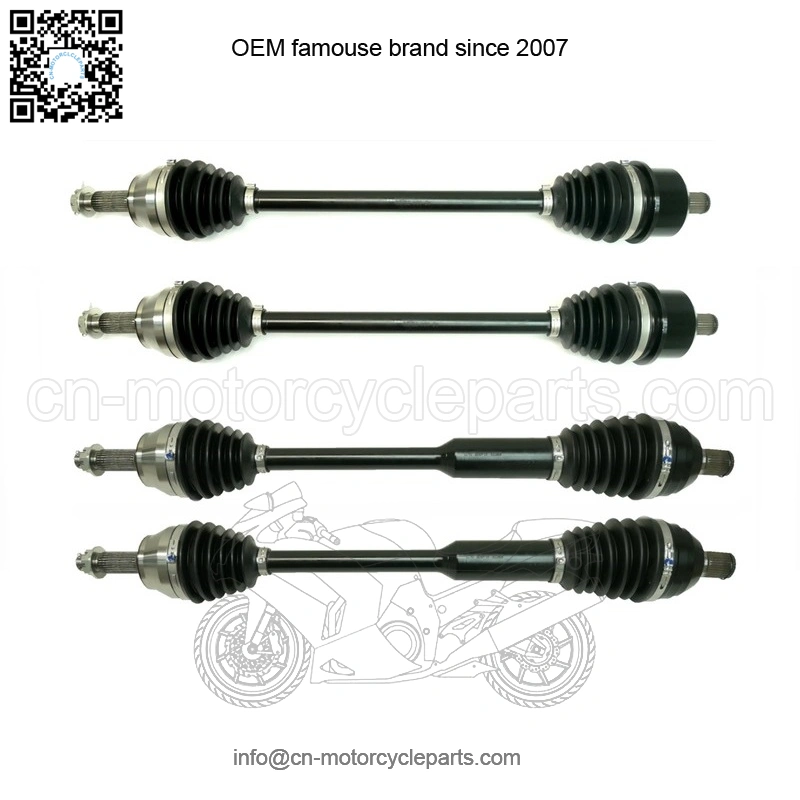

CV Axle Set for Arctic Cat Textron Wildcat XX 2018-2019, Set of 4

This is a set of new CV axles for an Arctic Cat Side x Side.

They will fit the following models:

2018-2019 … Wildcat XX (including RG, XT, LTD, & EPS)

*Front axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

(fronts) Stronger than OEM, 4340 chromoly steel axle bars

(fronts) Greased with a moly based grease to provide superior joint lubrication

(fronts) Fitted with neoprene CV boots for added wear and puncture resistance

(rears) High-performance AXLES XP series fitted with heavy duty CV boots

(rears) The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break.

(rears) Built from a unique, stronger than OEM chromoly-forged steel axle shaft.

Inboard CV joint spline count: Fronts – 27, Rears – 32

Outboard CV joint spline count: Fronts – 27, Rears – 27

Compressed overall axle length: Fronts – 803 mm, Rears – 764 mm

Replaces OEM # (fronts) 2502-708, (rears) 2502-763
