Can-Am Maverick X3 R/RR 4×4 2018-2024 A-Arm Bushing – 706204409 706201659

Premium Quality Replacement Part
Front or Rear Upper Lower Left & Right A-Arm Bushing
For Can-Am Models:
Rear Lower Inner Left & Right
Defender HD10 4×4 6×6 2017-2024
Defender Max HD10 4×4 2017-2024
Defender Pro HD10 4×4 2021-2024
Traxter HD10 4×4 6×6 2017-2023
Traxter PRO HD10 4×4 2021-2023
Traxter T HD10 4×4 2018 2020-2022
Traxter T MAX HD10 4×4 2018 2020-2022
Traxter MAX HD10 4×4 2023
Defender HD5 4×4 2017-2021
Traxter HD5 2017-2019
Traxter T HD5 4×4 2020-2021
Defender HD8 4×4 2017-2021
Defender Max HD8 4×4 2019-2021
Traxter HD8 2016-2019 2021
Traxter MAX HD8 2021
Traxter T HD8 2018-2019 2021
Defender Max HD7 4×4 DPS 2022-2024
Defender HD7 4X4 DPS XT 2022-2024
Traxter T HD7 4×4 2022
Traxter HD7 4×4 2023
Defender HD9 4×4 DPS 2022-2024
Defender Max HD9 4×4 DPS 2022-2024
Traxter HD9 4×4 2022-2023
Traxter MAX HD9 4×4 2022-2023
Traxter T HD9 4×4 2022
Front Upper or Lower Inner Left & Right
Maverick X3 Max R 4×4 DS RS Turbo DPS 2017-2021
Maverick X3 Max 4×4 DS Turbo DPS 2021-2024
Maverick X3 Max RR 4×4 XRS DS RS XDS XMR XRS Turbo DPS 2020-2023
Maverick X3 R 4×4 DS RS Turbo DPS 2018-2021
Maverick X3 RR 4×4 XRS DS XMR RS XDS XRC Turbo DPS 2021-2024
Maverick X3 4×4 DS Turbo DPS 2021-2024
Maverick X3 900 HO 4×4 DPS 2018
Front Upper or Lower Rear Lower Left & Right
Maverick Sport 1000 4×4 DPS 2019-2021
Maverick Sport 1000R 4×4 DPS XXC XMR XRC 2019-2021
Maverick Sport Max 1000R 4×4 DPS 2019-2021
Maverick Max 1000R 4×4 2014-2016
Maverick 1000R 4×4 2013-2016
Maverick Trail 800R 4×4 2018
Maverick Trail 1000 4×4 DPS 2018-2021
Maverick Trail 800 4×4 DPS 2019-2021
Order Includes:

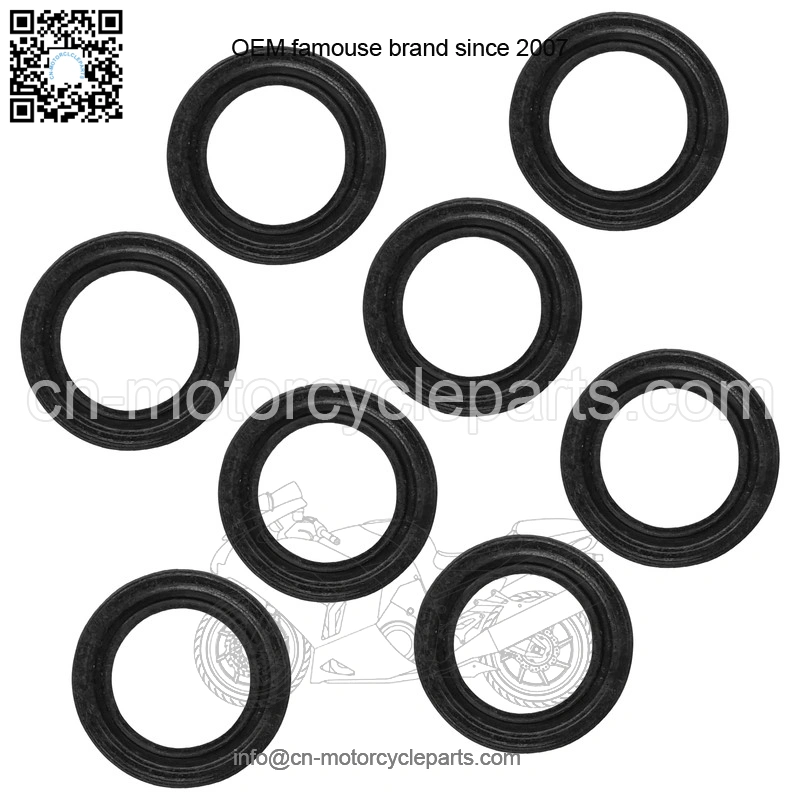

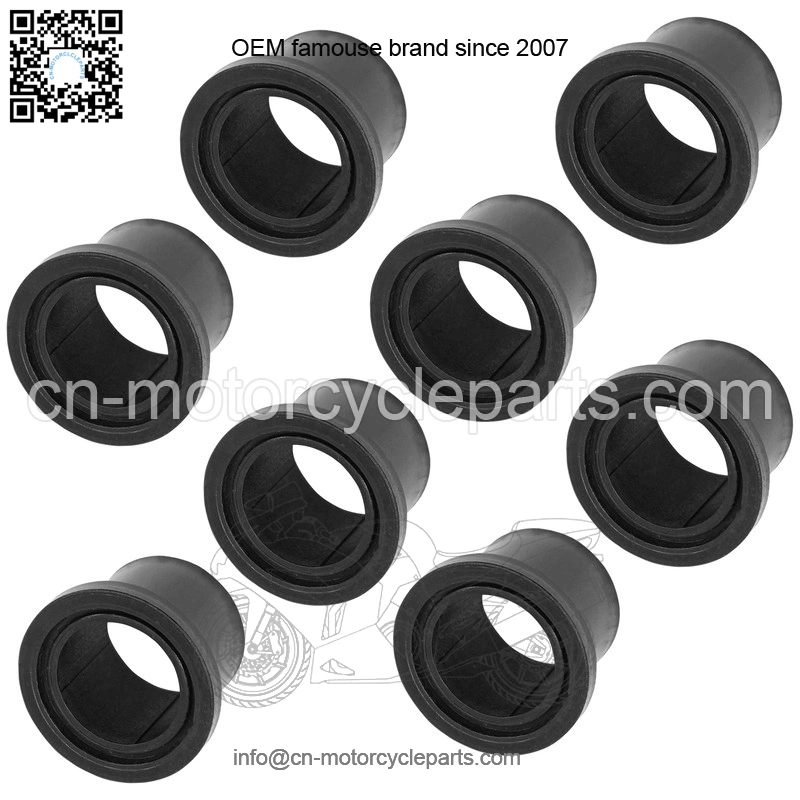

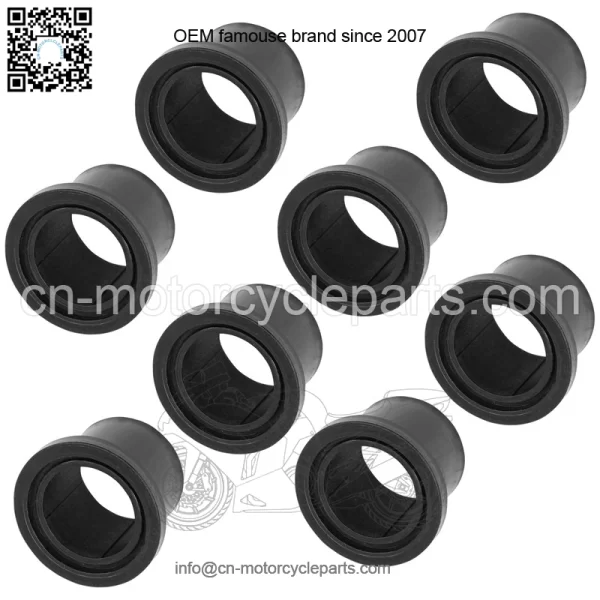

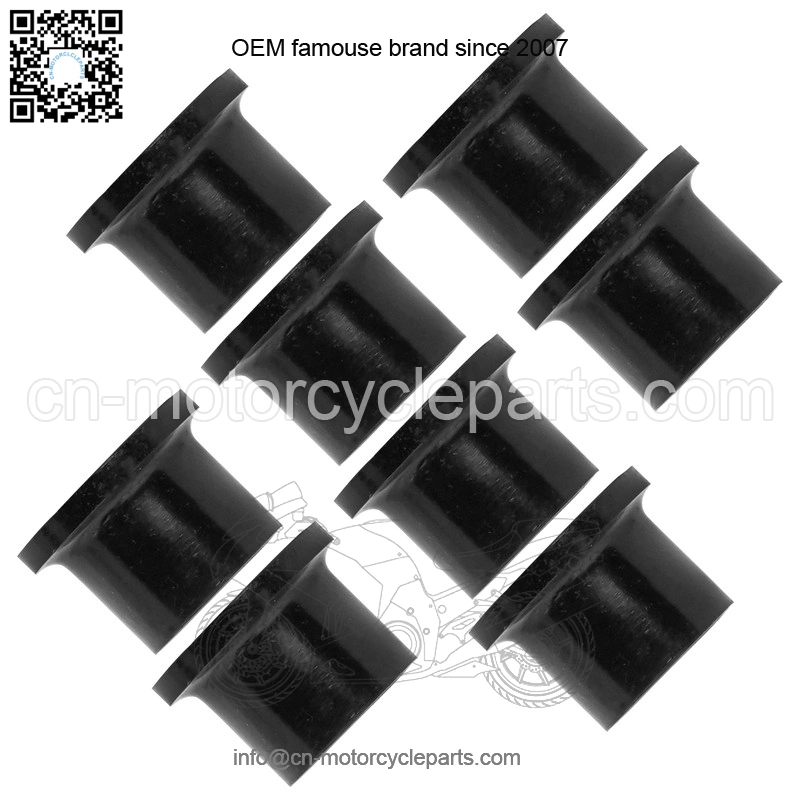

8 x Bushing | 706204409 706201659

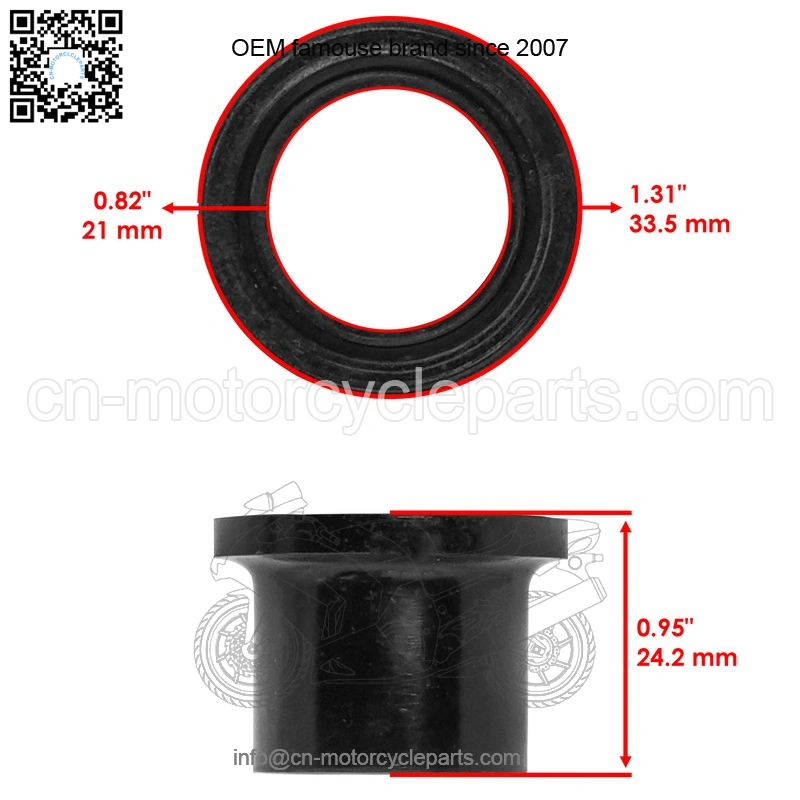

Width: 24.2 mm | 0.95″
Inner Diameter: 21 mm | 0.82″
Outer Diameter: 33.5 mm | 1.31″
Note: Installs On Location (A) (B) (C) (D) In Second Picture
Front A-Arm Part Number:
Upper Left:703501047 703501120 703501123 706203685 706204354 706205156 706205669 706203930 706202890 706204618 706202810
Upper Right 703501050 703501121 703501122 706203686 706204360 706205157 706205670 706203931 706202891 706204619 706202811
Lower Left: 706202919 706205241 706204733 706205243 706203940 706202874 706203341 706202824 706201607 706201861
Lower Right 706202920 706205242 706204734 706205244 706203941 706202875 706203342 706202825 706201608 706201862
Rear A-Arm Part Number:
Lower Left 706002775 706004577 706003855 706003767 706003893 706003891 706003067
Lower Right 706002776 706004578 706003856 706003768 706003894 706003892 706003068
Upper Left 706004312 706004314 706004310
Upper Right 706004315 706004313 706004311
