Camshaft Kit For Yamaha Grizzly 700 YFM700FG 2007-13 / Grizzly 550 YFM550 09-14

Premium Quality Replacement Part
Camshaft, Bearing & Guide
Compatible with Yamaha Models:
Grizzly 550 YFM550 4WD 2011-2013
Grizzly 550 YFM550 4WD Hunter 2011-2013
Grizzly 550 YFM550 EPS 4WD 2011-2013
Grizzly 550 YFM550 EPS 4WD Hunter 2011-2013
Grizzly 550 YFM550 FI 2014
Grizzly 550 YFM550 FI 4WD 2009-2010
Grizzly 550 YFM550 FI 4WD Hunter 2009-2010
Grizzly 550 YFM550 FI EPS 2014
Grizzly 550 YFM550 FI EPS 4WD 2009-2010
Grizzly 550 YFM550 FI EPS 4WD Hunter 2009-2010
Grizzly 550 YFM550 FI EPS 4WD SE 2009
Grizzly 550 YFM550 FI Hunting 2014
Grizzly 700 YFM700FG 2008
Grizzly 700 YFM700FG 4WD 2011-2013
Grizzly 700 YFM700FG 4WD Hunter 2011-2013
Grizzly 700 YFM700FG Ducks Unlimited Edition 2008-2009
Grizzly 700 YFM700FG EPS 4WD 2011-2013
Grizzly 700 YFM700FG EPS 4WD Hunter 2011-2013
Grizzly 700 YFM700FG EPS 4WD SE 2011-2013
Grizzly 700 YFM700FG FI 4WD 2009-2010
Grizzly 700 YFM700FG FI 4WD Hunter 2008-2010
Grizzly 700 YFM700FG FI EPS 4WD 2009-2010
Grizzly 700 YFM700FG FI EPS 4WD Hunter 2009-2010
Grizzly 700 YFM700FG FI EPS SE 2009-2010
Grizzly 700 YFM700FG Power Steering 2008
Grizzly 700 YFM700FG SE 2008

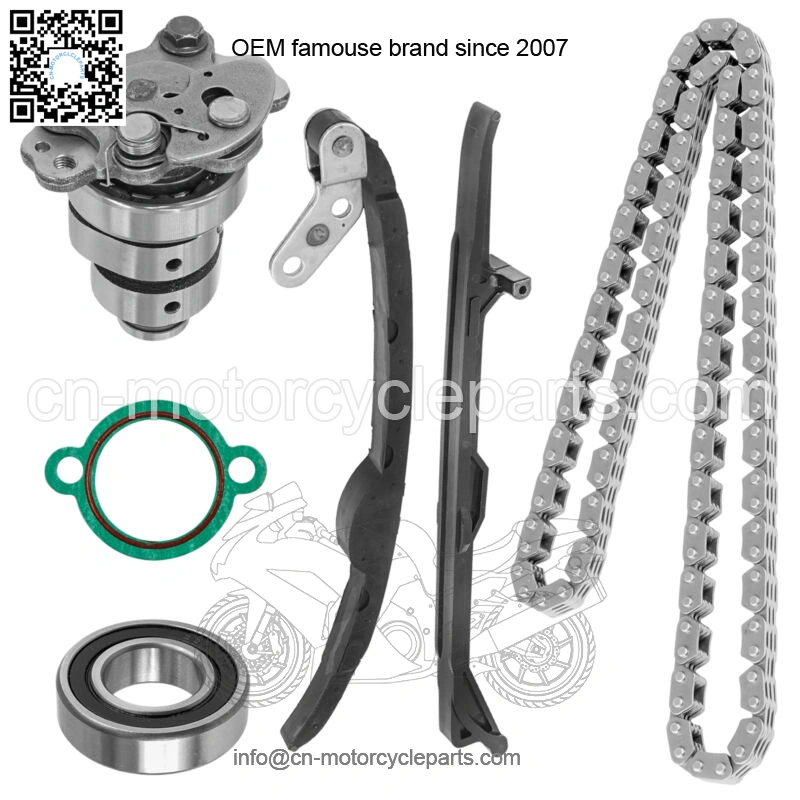

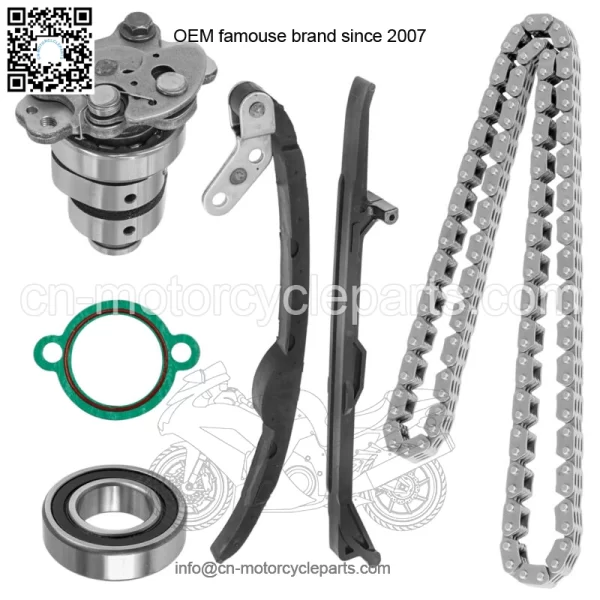

Order Includes:

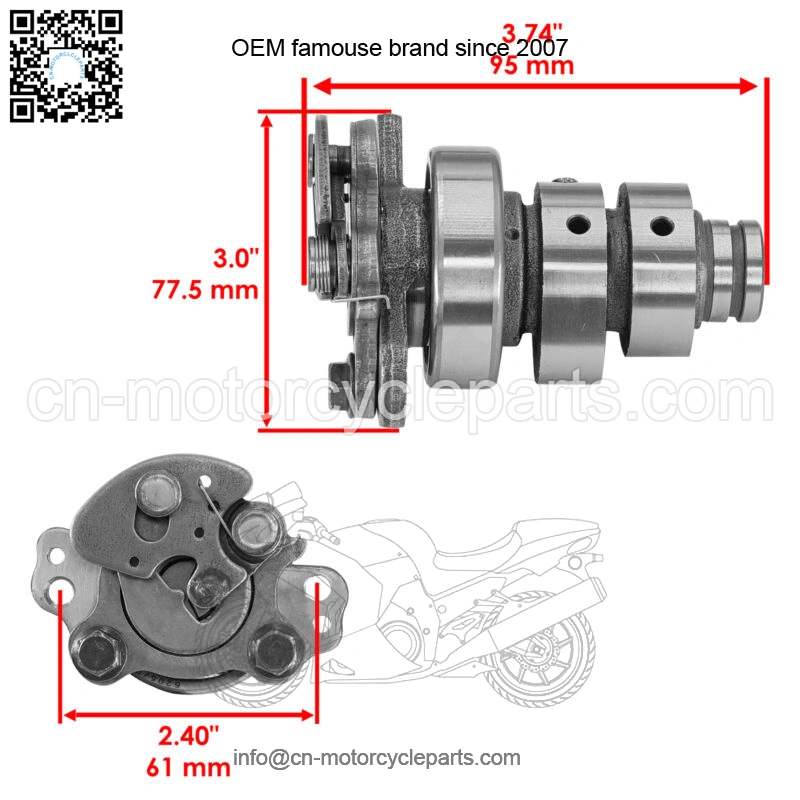

1x Camshaft: 3B4-12170-01-00
Length: 95 mm – 3.74 in
Mount Hole Distance: 61 mm – 2.40 in

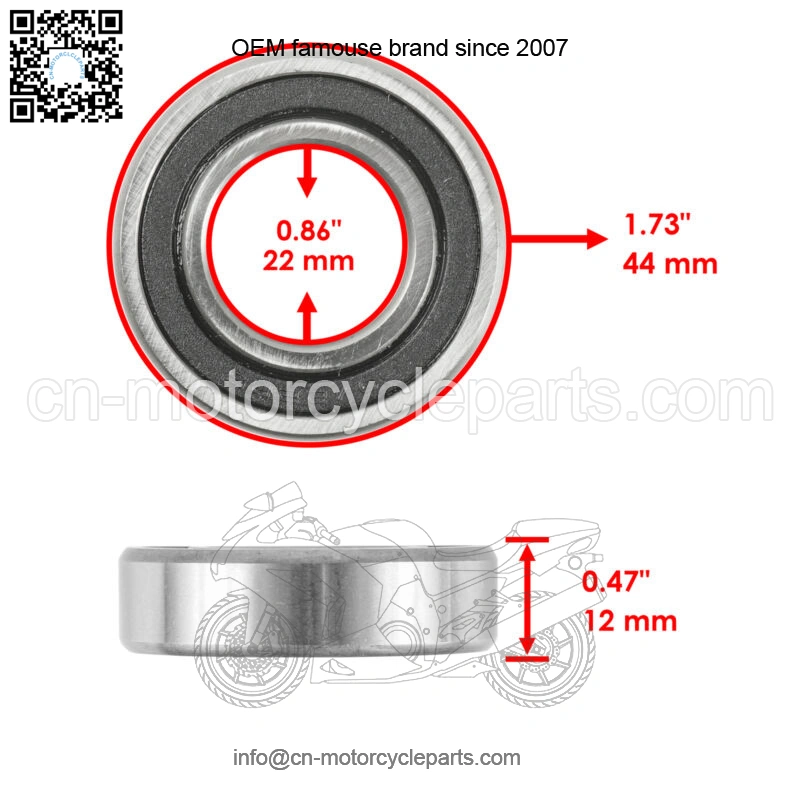

1x Bearing: 93306-07209-00
Width: 12mm – 0.47 in
Inner Diameter: 22mm – 0.86 in
Outer Diameter: 44mm – 1.73 in

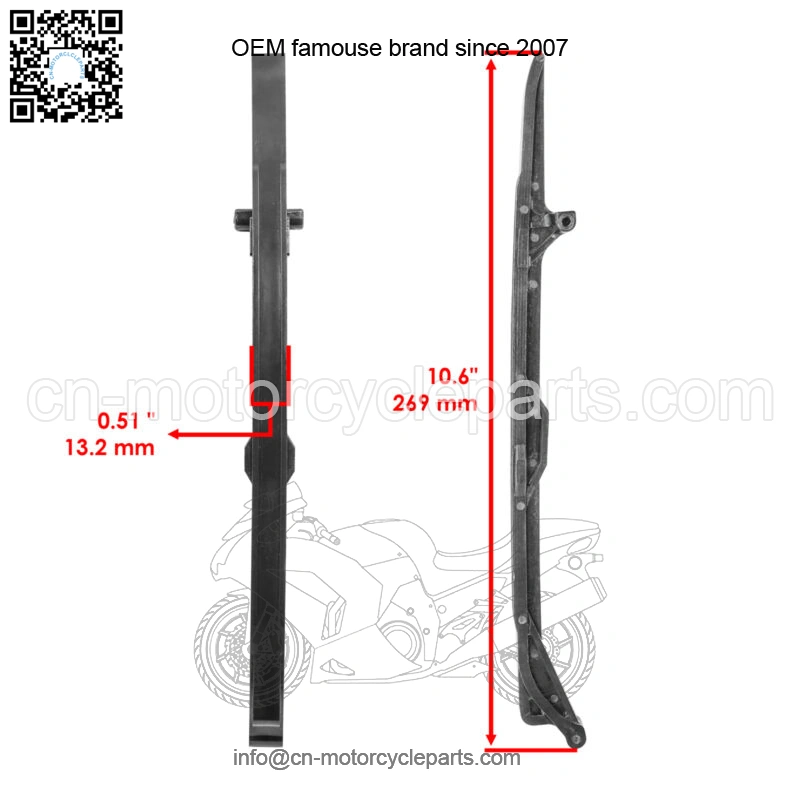

1x Guide: 3B4-12231-01-00
Width: 13.2 mm – 0.51 in
Height: 269 mm – 10.6 in

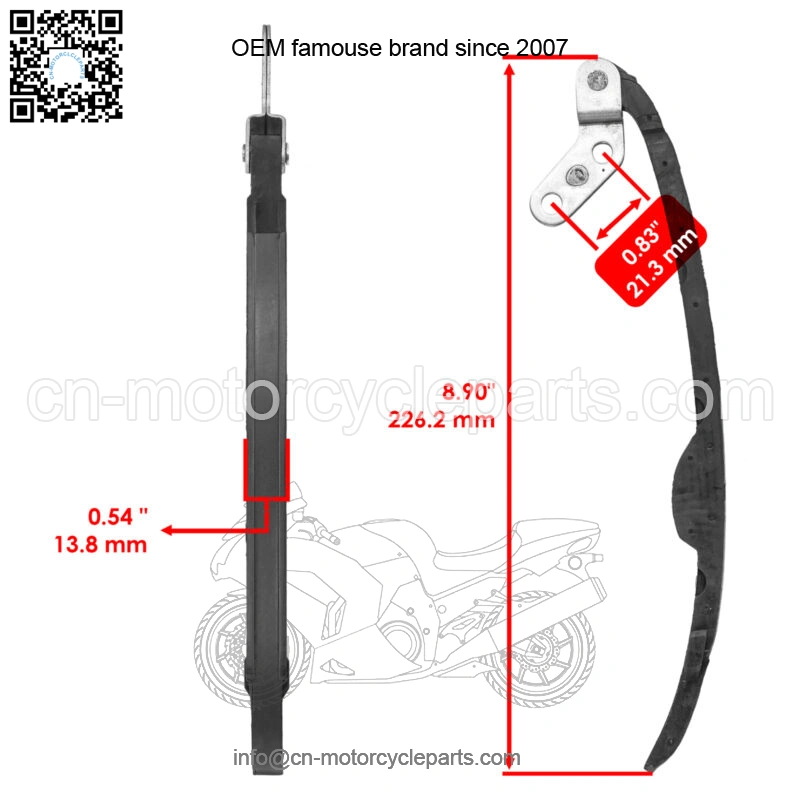

1x Guide: 3B4-12241-01-00
Height : 226.2mm – 8.90 in
Width: 13.8 mm – 0.54 in
1x Timing Chain: 94591-57126-00
Width: 5 mm – 0.20 in
1x Gasket: 4DW-12213-00-00
Mount Hole Distance: 42 mm – 1.65 in
Inner Diameter: 31.2 mm – 1.22 in
