48″ Deck Spindle Blade Kit For John Deere Z510 Z710 Z7810 Z820 Z910 Z915 Z920

Premium Quality Replacement Part
48″ Deck Spindle With Pulley and Blade
Compatible with John deere Models:
48″ Deck
Z510A Estate ZTrak
Z710A ZTrak Mower
Z810A Professional ZTrak
Z820A Professional ZTrak
Z910A ZTrak Pro Series Mower
Z915B ZTrak B Series Mower
Z920A ZTrak Pro Series Mower
Z920R ZTrak R Series Mower

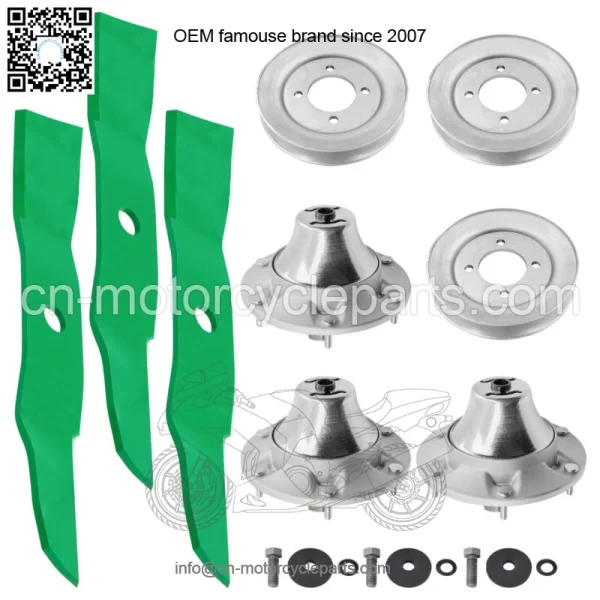

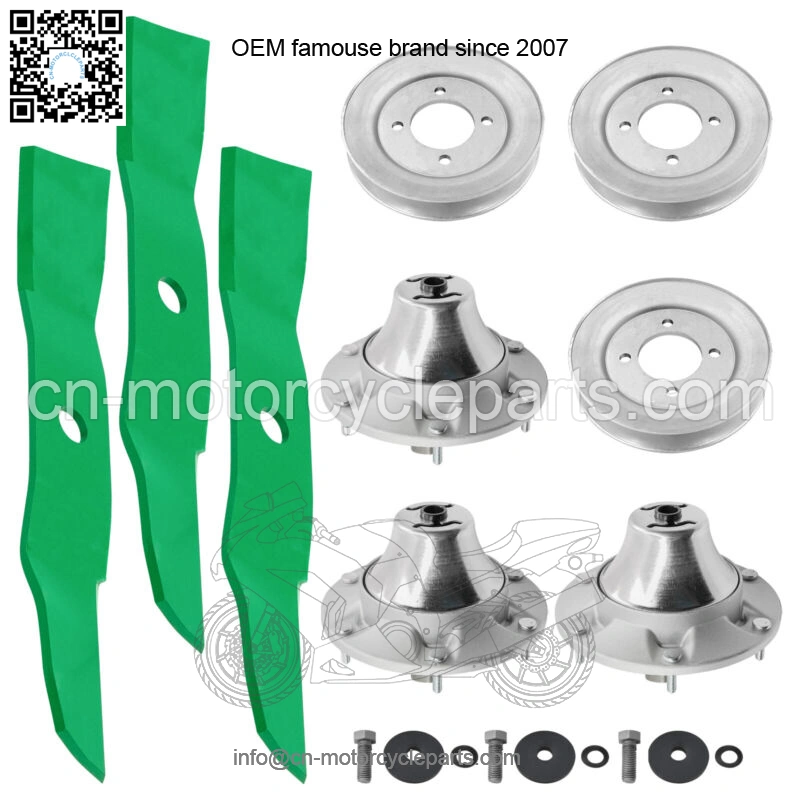

Order Includes:

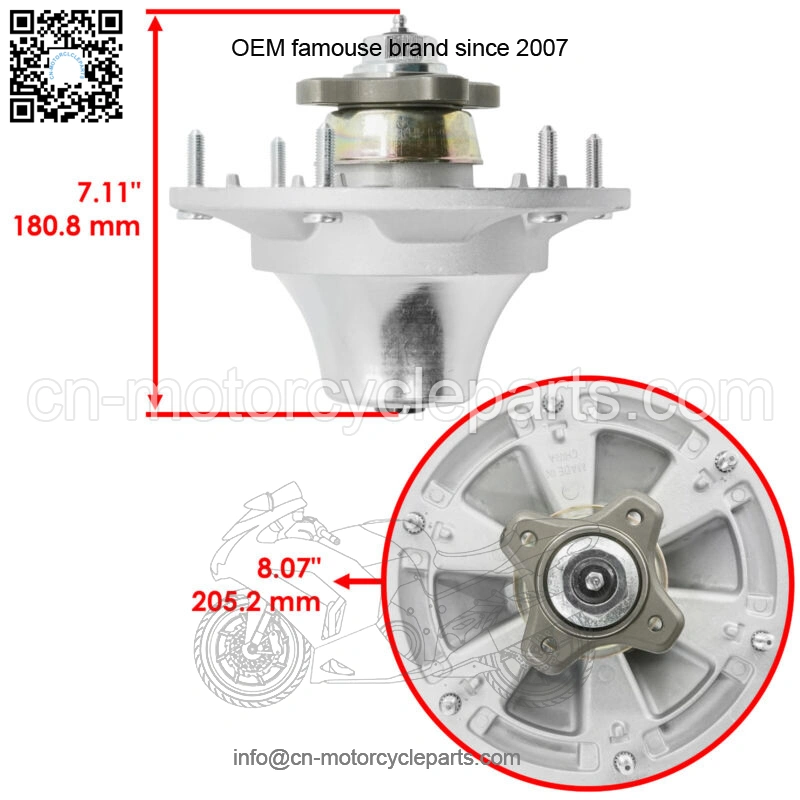

3 x Spindle: TCA24880, TCA20639 , TCA17517
Length: 180.8mm – 7.11 inOuter Diameter: 205.2mm – 8.07 in

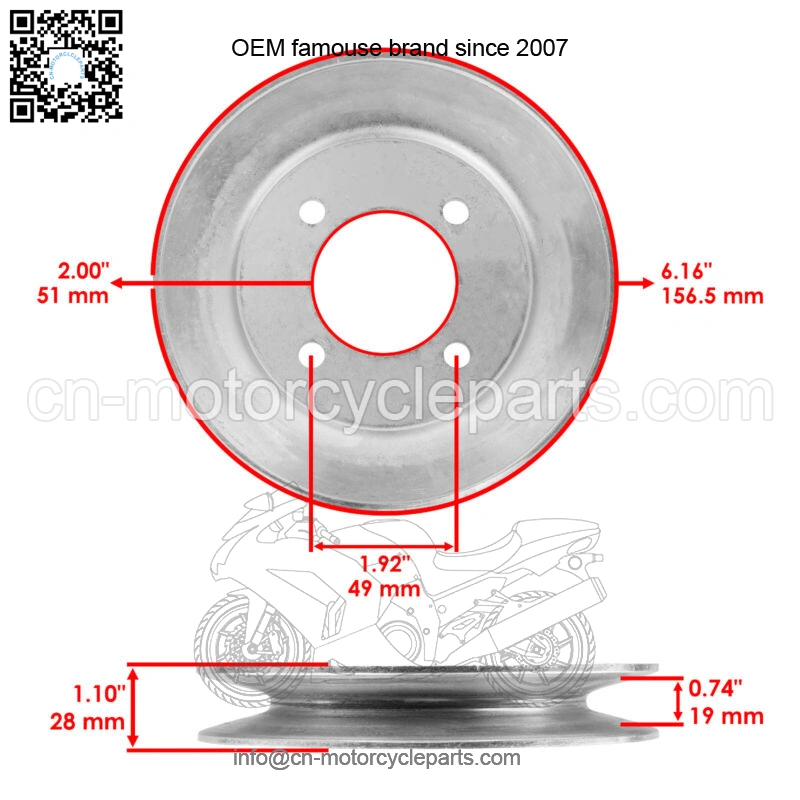

3 x Deck Spindle Pulley: TCU26965
Width: 28 mm – 1.1 inInner Diameter: 51 mm – 2 inOuter Diameter: 156.5 mm – 6.16 inMounting Hole Distance: 49 mm – 1.92 in

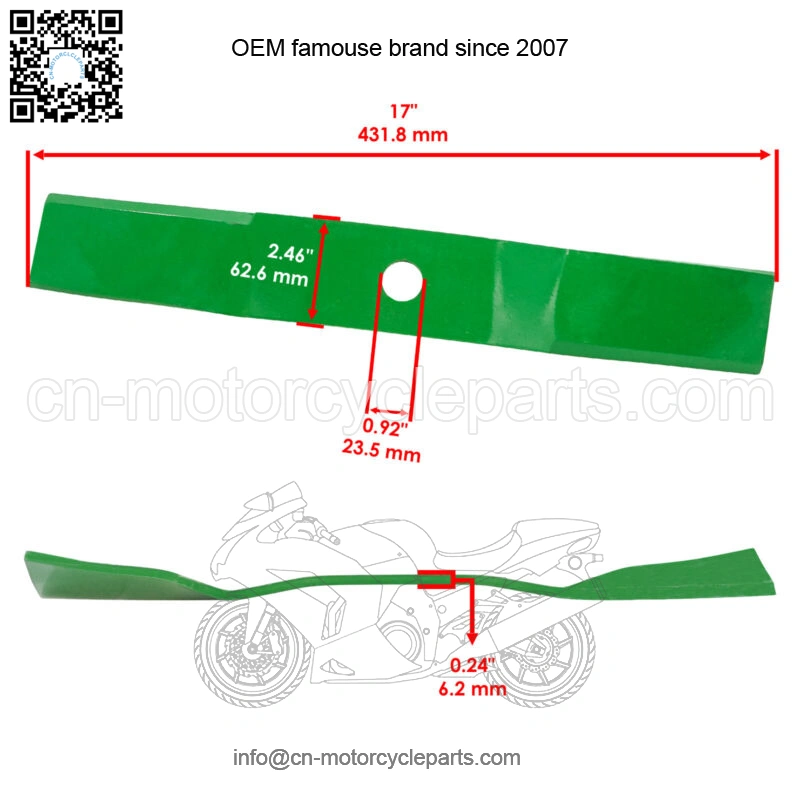

3 x Standard Blade: M136194, TCU18678
Length: 431.8mm – 17 inThickness: 6.2mm – 0.24 inWidth: 62.6mm – 2.46 inCentral Hole Diameter : 23.5mm – 0.92 inMaterial: SteelPowder Coated

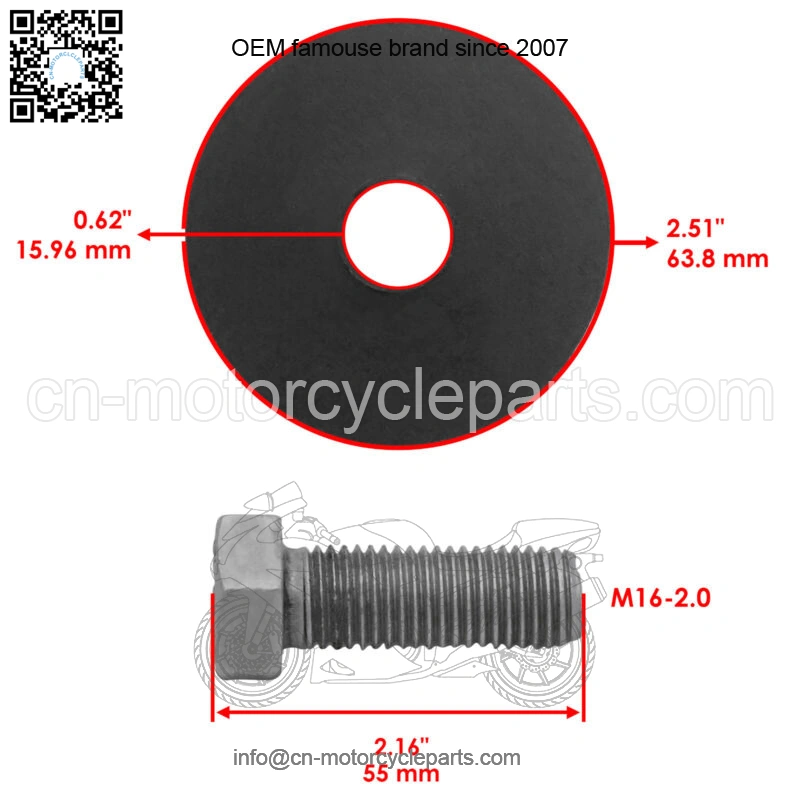

3 x Bolt with Washers: 19M7489, M123520, M123522
Length: 55 mm – 2.16 inThread Size: M16-2.0Washer inner Diameter : 15.96 mm – 0.62 inWasher Outer Diameter : 63.8 mm – 2.51 in
